Bridge Expansion Device
In the construction and maintenance of bridge engineering, bridge expansion joints are key components that ensure the safety of bridge structures and extend their service life. They can effectively cope with the displacement and deformation of bridges caused by factors such as temperature changes, concrete shrinkage and creep, and vehicle loads, preventing problems such as cracking and damage to the bridge structure. Our website is dedicated to providing you with high-quality bridge expansion joint products and comprehensive services, making us a trustworthy partner in your bridge projects.

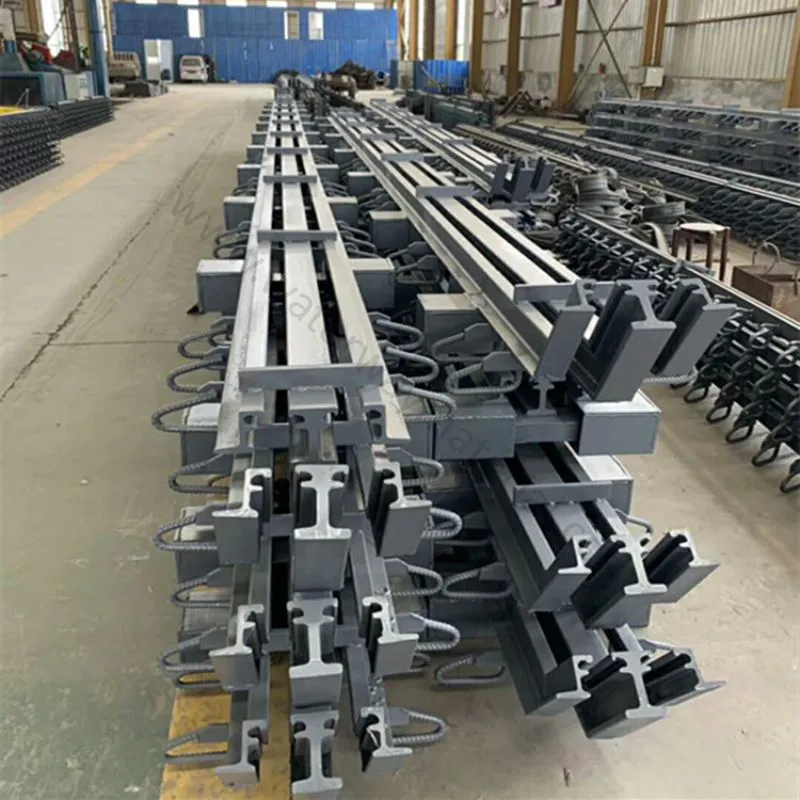

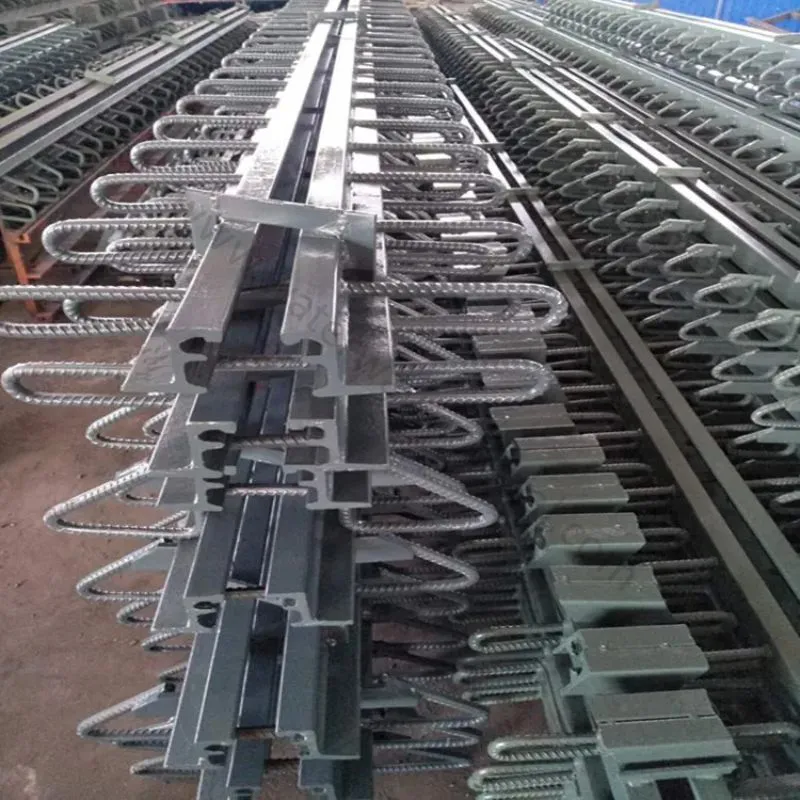

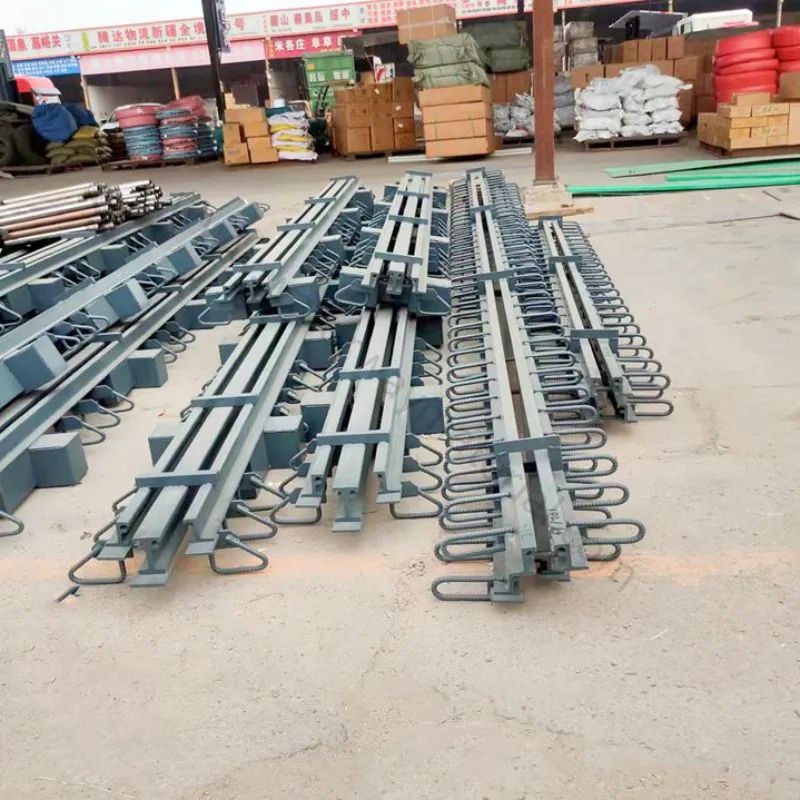

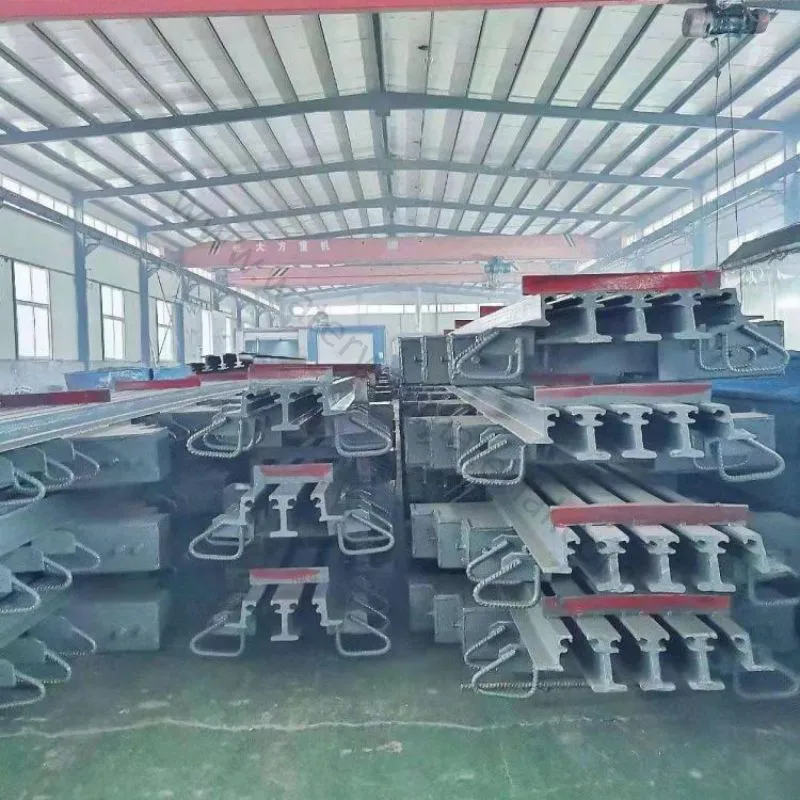

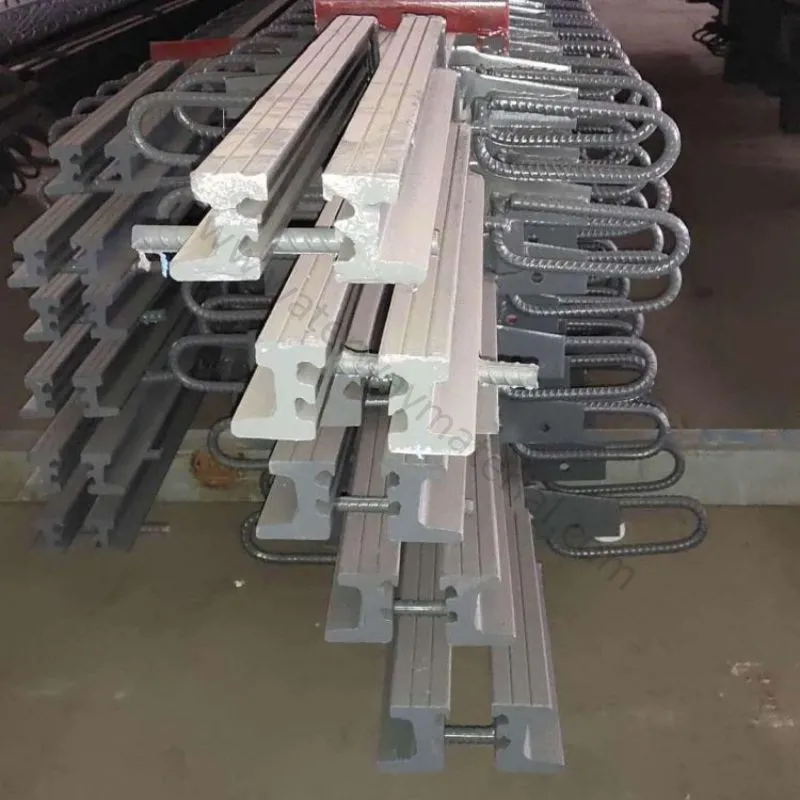

Modular Expansion Joints
● Composed of side beams, middle beams, crossbeams, and displacement control systems, their expansion capacity is achieved through the combination of modules, with an expansion range generally between 160mm and 1200mm.
● Adopting a strong integral structure, they can withstand the long-term impact of heavy vehicle loads, having good bearing capacity and stability. During vehicle travel, they can ensure the smoothness of the bridge deck, reduce vehicle jolts, and minimize damage to the bridge structure and vehicles.
● Suitable for bridges of various spans, especially large-span bridges and bridge projects with high expansion requirements. Their structural design is reasonable, installation is convenient, and later maintenance is relatively simple, with a long service life.
Comb Plate Expansion Joints
● Consisting of comb-shaped steel plates, anchor bolts, pre-embedded steel bars, and other components, they realize the expansion and contraction of the bridge through the interlaced engagement of the comb teeth. The expansion amount is generally around 0-300mm.
● They have strong compression and wear resistance, being able to adapt to the frequent rolling of vehicles. Their surfaces are specially treated, with a small friction coefficient, which can reduce noise and vibration during vehicle travel.
● Commonly used in medium-span bridges, such as urban road bridges and highway bridges. During installation, high requirements are placed on the flatness of the bridge beam ends to ensure the smooth running of vehicles.
Rubber Expansion Joints
● With rubber as the main material, they meet the expansion and contraction needs of the bridge through the elastic deformation of rubber, with an expansion amount usually between 0-80mm.
● They have good sealing performance, which can effectively prevent rainwater, debris, etc., from infiltrating into the interior of the expansion joint and the gaps of the bridge structure, protecting the bridge's beam body and piers. At the same time, rubber materials have a certain shock absorption effect, which can reduce the impact of vehicle loads on the bridge.
● Suitable for small-span bridges, urban pedestrian overpasses, and some bridge parts with low expansion requirements. They have a simple structure, low cost, and are easy to install and replace.
Filled Expansion Joints
● Special polyurethane materials or asphalt and other filling materials are used to fill the reserved grooves of bridge expansion joints, adapting to the expansion and contraction of the bridge through the elastic and plastic deformation of the materials.
● Construction is simple and fast, without the need for complex machinery and equipment, and can be completed in a short time. They have good bonding performance, combining closely with the bridge structure, and have a good sealing effect.
● Suitable for bridges with small expansion amounts (generally 0-50mm), such as rural road bridges, small water conservancy bridges, etc., and can also be used for the maintenance and reconstruction of expansion joints in old bridges.
Excellent Expansion Performance：Our bridge expansion joint products have undergone careful design and rigorous testing, being able to accurately meet the expansion needs of bridges under various working conditions. Whether it is thermal expansion and contraction caused by temperature changes or structural deformation due to vehicle loads, they can be resolved through the flexible expansion and contraction of the expansion joints, avoiding additional stress in the bridge structure and protecting the integrity of the bridge.
Strong Bearing Capacity：Using high-quality raw materials and advanced manufacturing processes, our expansion joints have high strength and rigidity, being able to withstand the long-term rolling and impact of heavy vehicles. While ensuring the stability of their own structure, they evenly transmit vehicle loads to the bridge structure, reducing local damage to the bridge.
Excellent Sealing and Waterproof Performance：Good sealing performance is one of the important characteristics of bridge expansion joints. Our products, through reasonable structural design and high-quality sealing materials, can effectively prevent rainwater, snow, dust, and other debris from entering the interior of the expansion joints and the gaps of the bridge structure, preventing problems such as steel bar corrosion and concrete weathering, and extending the service life of the bridge.
Good Wear and Aging Resistance：Bridge expansion joints are exposed to the natural environment for a long time, facing various tests such as wind, sun, rain, and vehicle friction. Our products are made of wear-resistant and aging-resistant materials and undergo special surface treatment, being able to resist erosion from various harsh environments, maintain stable performance, and reduce the number of maintenance and costs.
Highway Bridges：In highway bridges at all levels, bridge expansion joints are essential components. They can adapt to the loads and vibrations caused by the large number of vehicles on the highway and the impact of temperature changes in different regions on the bridge, ensuring the traffic safety and comfort of highway bridges. Whether it is expressway bridges, first-class highway bridges, or rural highway bridges, suitable expansion joint products can be found.
Urban Bridges：Urban bridges often have large traffic volumes, a variety of vehicle types, and complex surrounding environments. Our bridge expansion joints can meet the requirements of urban bridges for smoothness, low noise, and aesthetics, providing a guarantee for the smooth operation of urban traffic. They are suitable for urban overpasses, river-crossing bridges, urban main road bridges, etc.
Railway Bridges：Railway bridges have stricter requirements for expansion joints, needing to withstand the high-frequency vibration and large longitudinal impact force of trains. Our special expansion joints for railway bridges have higher strength and stability, being able to ensure the safe and smooth running of trains and adapt to the special working environment of railway bridges.
Other Special Bridges：In some special types of bridges, such as cable-stayed bridges, suspension bridges, and arch bridges, due to the particularity of their structural forms, higher requirements are placed on the performance and installation accuracy of expansion joints. We can provide customized expansion joint solutions according to the specific design and usage needs of these bridges, ensuring that they perfectly match the bridge structure and exert optimal performance.
Professional Selection Guidance：Our technical team has rich experience in the design and application of bridge expansion joints, being able to provide you with professional product selection suggestions based on factors such as your bridge type, span, traffic volume, and geographical location. Helping you choose the most suitable type and specification of expansion joints to ensure that they can meet the actual usage needs of the bridge.
Customized Solutions：For some bridge projects with special design requirements or complex working conditions, we can provide you with customized expansion joint solutions. From product design, material selection to production and manufacturing, we will communicate and cooperate with you throughout the process to ensure that the customized products fully meet your engineering requirements and solve your problems related to expansion joints.
Comprehensive Installation and After-sales Service：We have a professional installation team that can provide on-site installation services to ensure that the installation quality of expansion joints meets relevant standards and specifications. After the products are put into use, we will also provide regular maintenance guidance and after-sales services, promptly responding to your needs, solving problems encountered during use, and ensuring the long-term effective operation of the expansion joints.
Detailed Product Display：The website displays various bridge expansion joint products in detail, including information such as product structural features, technical parameters, applicable scenarios, and physical pictures. You can intuitively understand the characteristics of different products through the website, providing a reference for your selection.
Online Consultation and Communication：If you have any questions about the products or need further information, you can communicate with our customer service staff in real-time through the online consultation function of the website. Our customer service staff will promptly answer your questions and provide professional services and suggestions.
Cases and Technical Materials：The website collects a large number of application cases of bridge expansion joints, including the usage and effects of different types of bridges. You can learn about the actual application effects of our products through these cases. At the same time, we also provide a wealth of technical materials for download, such as product manuals, installation guides, and technical specifications, facilitating you to gain an in-depth understanding of product knowledge.
Quick Quotation and Ordering：You can submit product inquiry information on the website, and we will provide you with an accurate quotation in a short time. For products that you decide to purchase, you can also complete the ordering process through the online ordering system of the website, which is convenient and efficient.
Choosing our bridge expansion joint products means choosing reliable quality and professional services. Our website will provide you with comprehensive product information and service support to help your bridge project proceed smoothly. Visit our website immediately to learn more about bridge expansion joint products and let us protect the safety of your bridge!
