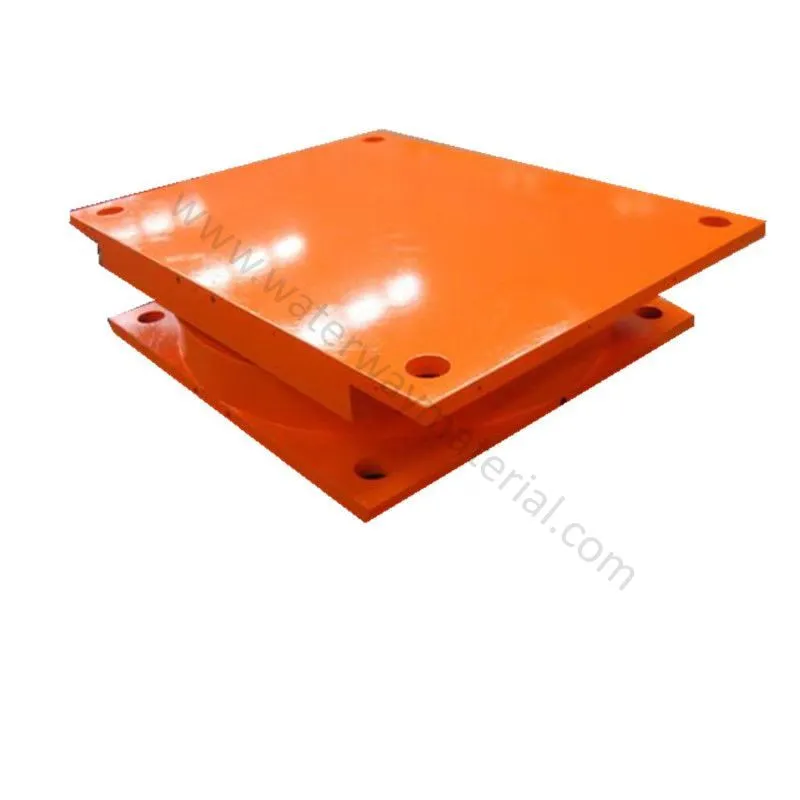

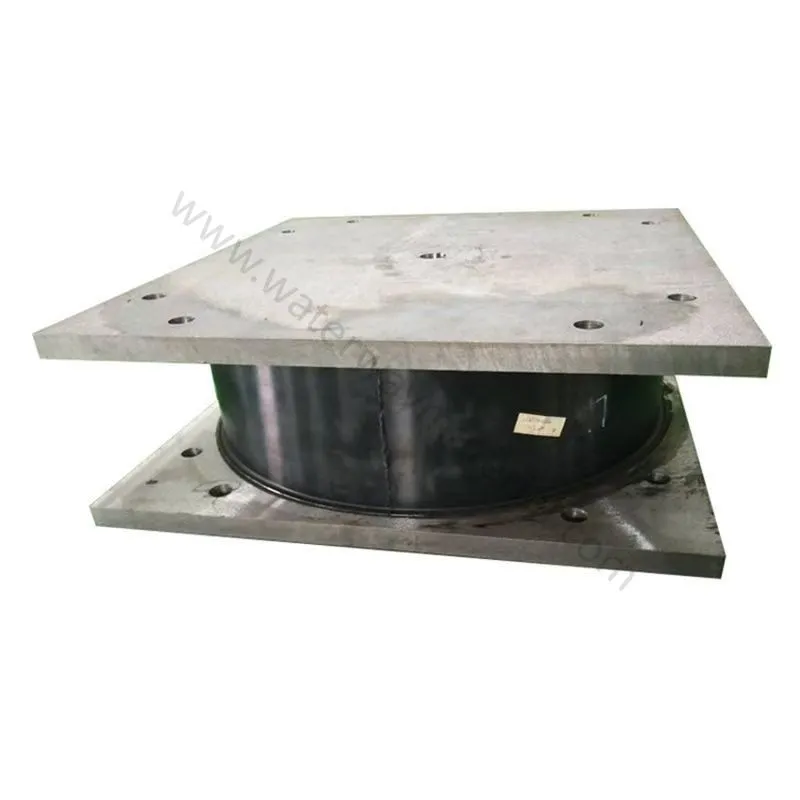

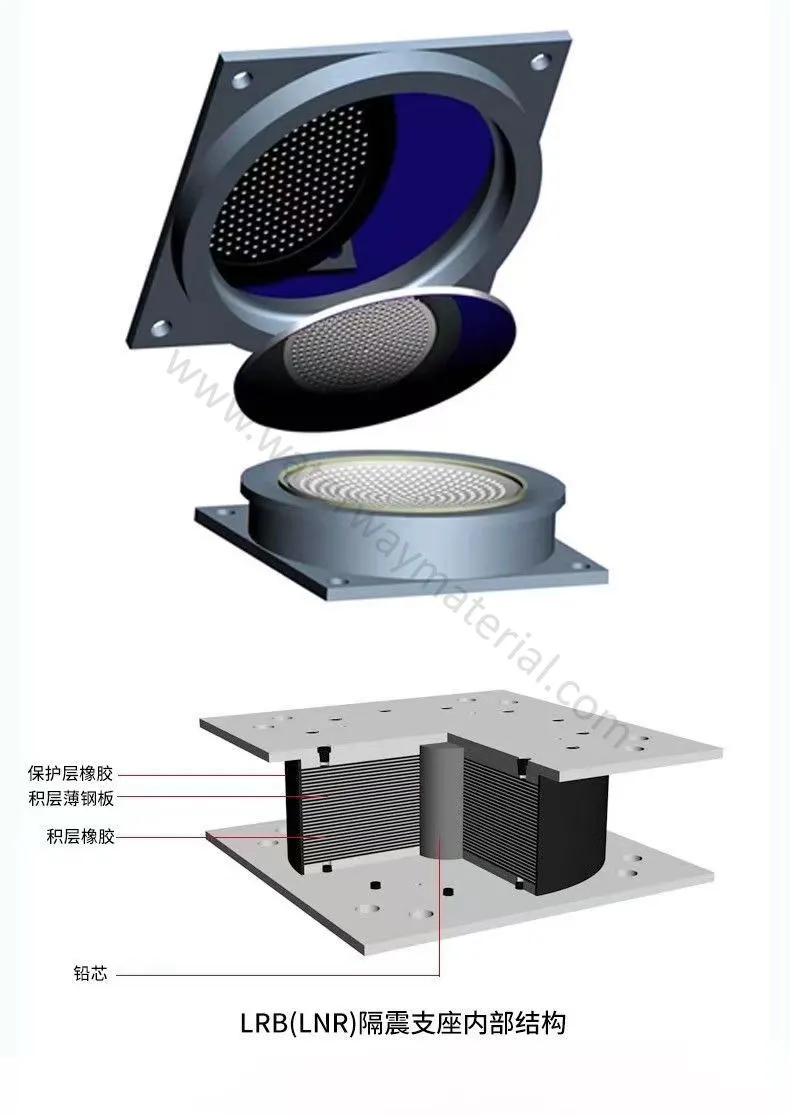

Bridge Rubber Bearing

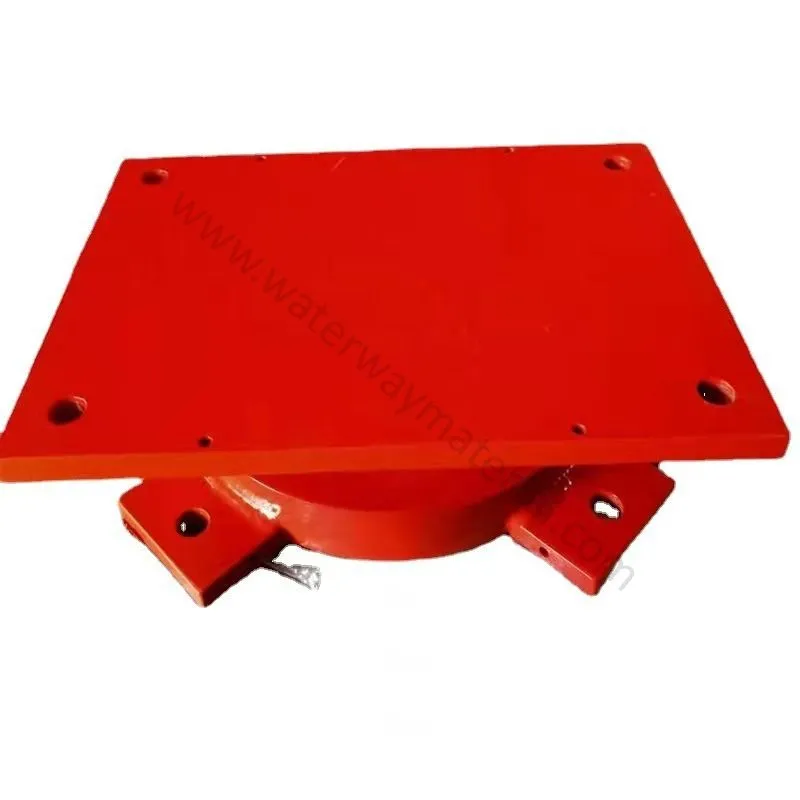

Pot bearing SPZ1250GD is a medium-load, guided-fixed type component, optimized for medium-span bridge projects that need directional displacement control and basic durability. Its key application scenarios are as follows:
Urban Overpasses & Flyovers
It resists lateral forces from crosswinds and vehicle centrifugal force (thanks to restricted transverse displacement ≤ ±5 mm), while allowing ±20 mm longitudinal movement to adapt to temperature changes—ideal for busy urban traffic structures.
Rural/Suburban Highway Bridges
Suitable for bridges with spans of 10–30 meters. Its 1,250 kN load capacity supports heavy trucks, and the -40℃~+60℃ temperature range adapts to seasonal fluctuations in most rural areas.
Small River-Crossing Bridges
With hot-dip galvanization and EPDM seals, it resists humidity and rainwater corrosion. The guided design prevents lateral slippage caused by water flow impact, ensuring long-term stability.
Industrial Access Bridges
Its high horizontal load capacity (≥ 375 kN) and wear-resistant PTFE sliding plate handle frequent heavy equipment (e.g., 50-ton trucks) passage, meeting the needs of factory or logistics park access.
In short, SPZ1250GD excels in scenarios requiring a balance of load-bearing, directional control, and basic corrosion resistance—covering most non-extreme environment medium-span bridges.
Detailed Introduction to Pot Bearing Model SPZ1250GD
1. Model Interpretation
The model "SPZ1250GD" follows the GB/T 17955-2015 standard (Chinese National Standard for Pot Bearings) and industry naming conventions, with each segment representing core attributes:
SPZ: Abbreviation for "Special Pot Bearing for Bridges" – indicating it is a specialized pot bearing designed for bridge infrastructure, with optimized load-bearing and displacement performance.
1250: Denotes the rated vertical load capacity of 1,250 kN (125 tons) – suitable for medium-span bridges (10–30 meters) such as urban overpasses and rural highways.
GD: Stands for "Guided Fixed Type" – a hybrid design that combines fixed bearing stability and guided bearing direction control: it restricts transverse (lateral) displacement while allowing limited longitudinal (axial) movement, preventing bridge girders from shifting off-track under dynamic loads.
2. Core Technical Parameters
Parameter Category
Specification Value
Remarks
Rated Vertical Load
1,250 kN
Tested under static load (1.5× rated load for 1 hour, no permanent deformation)
Horizontal Load Capacity
≥ 375 kN (30% of vertical load)
For resisting lateral forces from wind, vehicle centrifugal force, or seismic activity
Longitudinal Displacement
± 20 mm
Allowed movement along the bridge’s length (to compensate for temperature expansion/contraction)
Transverse Displacement
≤ ± 5 mm
Restricted to prevent lateral slippage (core "guided" function)
Allowable Rotation
0.02 rad (≈ 1.15°)
Accommodates bridge girder deflection under load (e.g., heavy trucks)
Friction Coefficient
≤ 0.03 (dry condition); ≤ 0.015 (with grease)
Based on PTFE-stainless steel sliding pair
Operating Temperature
-40℃ ~ +60℃
Suitable for most climates (cold northern regions to warm southern areas)
Service Life
≥ 30 years
Under standard maintenance and non-corrosive environments
3. Structural Composition & Material Advantages
SPZ1250GD adopts a 5-layer modular structure, each component engineered for durability and performance:
3.1 Cast Steel Basin (Load-Bearing Core)
Material: High-tensile Q345B low-alloy cast steel (yield strength ≥ 345 MPa).
Design Features:
Thickened basin wall (18 mm) and bottom (22 mm) to resist impact from heavy loads;
Hot-dip galvanization (zinc coating thickness ≥ 85 μm) + epoxy resin topcoat – protects against rust in humid or rainy environments (e.g., river-crossing bridges).
Function: Distributes vertical loads evenly from the bridge girder to the pier foundation, avoiding local stress concentrations.
3.2 PTFE Sliding Plate (Displacement Medium)
Material: Modified PTFE composite (blended with 15% glass fiber and 5% bronze powder) – enhances wear resistance by 40% compared to pure PTFE.
Dimensions: 180 mm × 150 mm × 8 mm (length × width × thickness); surface flatness tolerance ≤ 0.1 mm/m.
Function: Enables smooth longitudinal displacement with minimal friction, reducing mechanical wear on bridge girders.
3.3 Stainless Steel Sliding Surface
Material: 304 stainless steel (thickness 3 mm) – attached to the bottom of the bridge girder.
Surface Treatment: Mirror polishing (Ra ≤ 0.8 μm) – ensures tight contact with the PTFE plate and minimizes friction.
3.4 EPDM Sealing Ring
Material: Ethylene Propylene Diene Monomer (EPDM) rubber (Shore hardness 60±5).
Function: Seals the gap between the cast steel basin and PTFE plate, preventing dust, rainwater, or road salt from entering – prolonging the sliding pair’s service life by 5–8 years.
3.5 Steel Guide Rails
Material: 45# carbon steel (quenched and tempered, hardness HRC 28–32).
Installation: Two parallel rails fixed to the pier, on either side of the cast steel basin.
Function: Restricts transverse displacement to ≤ ±5 mm, guiding the bridge’s movement strictly along the longitudinal direction (critical for curved or mountainous highway bridges).
4. Key Functional Characteristics
4.1 Guided-Fixed Dual Performance
Unlike pure fixed bearings (no displacement) or pure guided bearings (unlimited single-direction movement), SPZ1250GD balances stability and adaptability:
Fixed function: Limits transverse displacement to protect bridge piers from lateral damage (e.g., from strong crosswinds).
Guided function: Allows ±20 mm longitudinal movement to compensate for temperature-induced expansion (summer) and contraction (winter) of concrete girders.
4.2 High Seismic Resistance
Integrated steel shear keys (embedded in the cast steel basin) – designed to yield at 400 kN horizontal load, absorbing seismic energy during moderate earthquakes (≤ 7 magnitude).
Post-seismic recoverability: The guided rails prevent permanent misalignment, enabling quick bridge inspection and restoration.
4.3 Low Maintenance & Durability
PTFE plate’s self-lubricating property eliminates the need for frequent grease replenishment (only reapply every 3–5 years).
Hot-dip galvanization + epoxy coating resists corrosion in industrial or coastal areas (tested to withstand 1,000 hours of neutral salt spray without visible rust).
5. Applicable Scenarios
SPZ1250GD is optimized for medium-span bridge projects requiring directional displacement control, including:
Urban overpasses and flyovers (resisting lateral traffic loads and wind forces);
Rural and suburban highway bridges (span 10–30 meters, adapting to temperature fluctuations);
Small river-crossing bridges (corrosion-resistant design for humid environments);
Industrial access bridges (supporting heavy truck loads up to 50 tons).
6. Installation & Maintenance Guidelines
6.1 Installation Requirements
Foundation Leveling: The pier top must be leveled to within ±0.5 mm/m – use cement mortar to adjust unevenness (prevents uneven load distribution).
Guide Rail Alignment: Ensure the guide rails are parallel to the bridge’s longitudinal axis (tolerance ≤ 1 mm/m) – misalignment will cause jamming during displacement.
Lubrication: Apply silicone grease (compatible with PTFE) to the sliding surface before installing the bridge girder – ensures friction coefficient ≤ 0.02.
Bolt Fastening: Use M24 high-strength bolts (8.8 grade) to fix the cast steel basin to the pier, tightening to a torque of 450 N·m.
6.2 Routine Maintenance
Inspection Frequency: Annually (urban bridges) or biennially (rural bridges).
Key Checks:
EPDM seal: Replace if cracks or deformation are found;
PTFE plate: Replace if wear thickness ≤ 4 mm (half of original 8 mm);
Guide rails: Check for loose bolts or bending (tighten or straighten as needed).
7. Quality Certification & Compliance
Complies with GB/T 17955-2015 (China) and EN 1337-5 (Europe) standards for pot bearings;
ISO 9001:2015 quality management system certified (from raw material inspection to finished product testing);
Each unit undergoes factory load testing (1.5× rated vertical load for 1 hour) and displacement testing (±20 mm longitudinal movement) before shipment – test reports provided with delivery.
