Hydraulic Elevator Dam

To fully understand the structural composition and operational logic of a hydraulic lifting dam—a modern, flexible water-retaining structure widely used in water conservancy projects—we need to break down its core components, including their materials, structural features, and functional roles. Each part is designed to work in synergy to achieve precise water level regulation, stable load-bearing, and reliable water sealing.

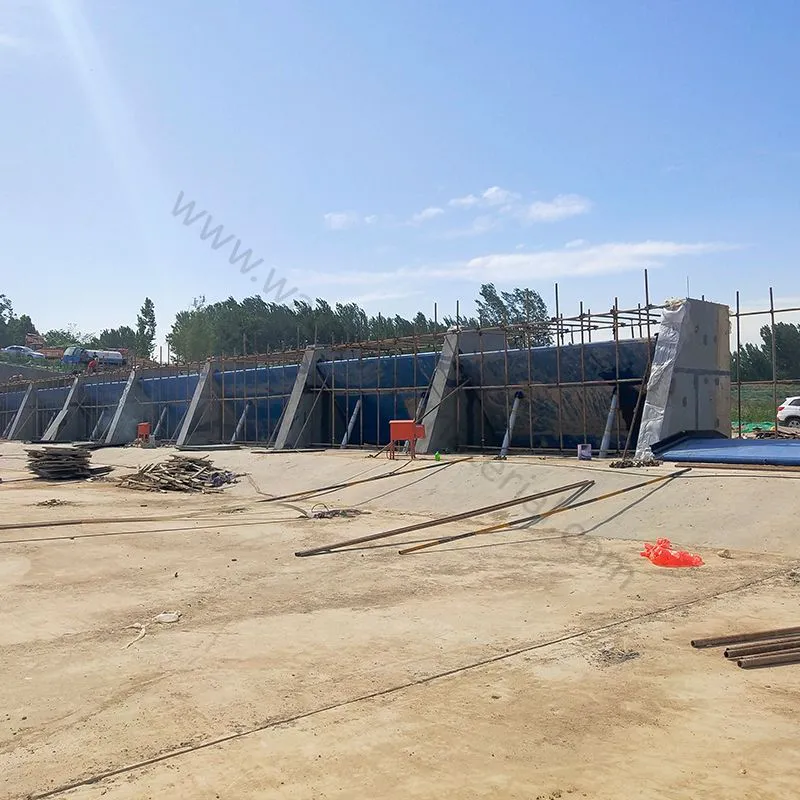

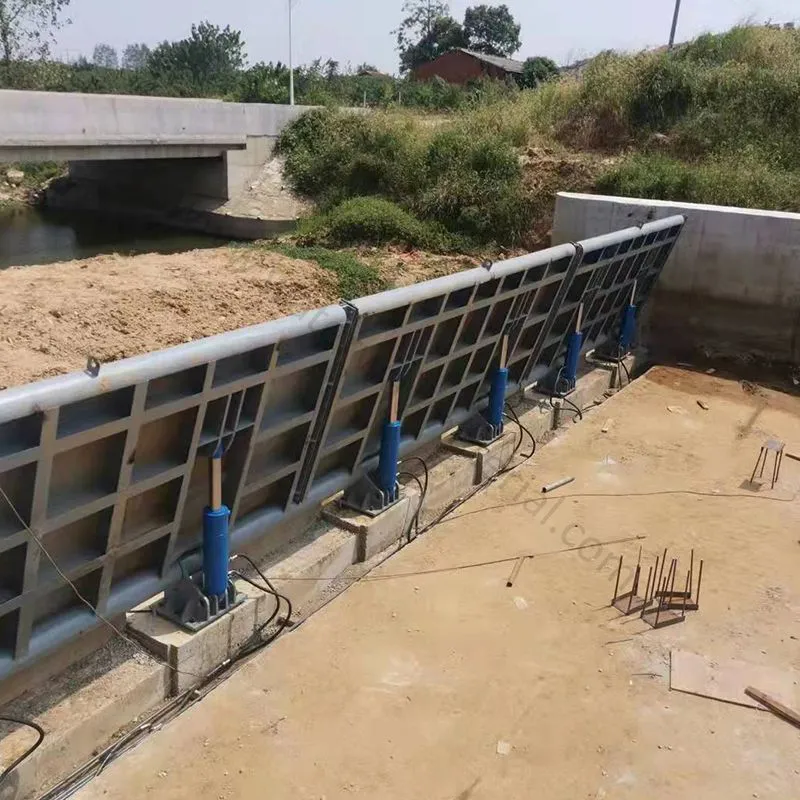

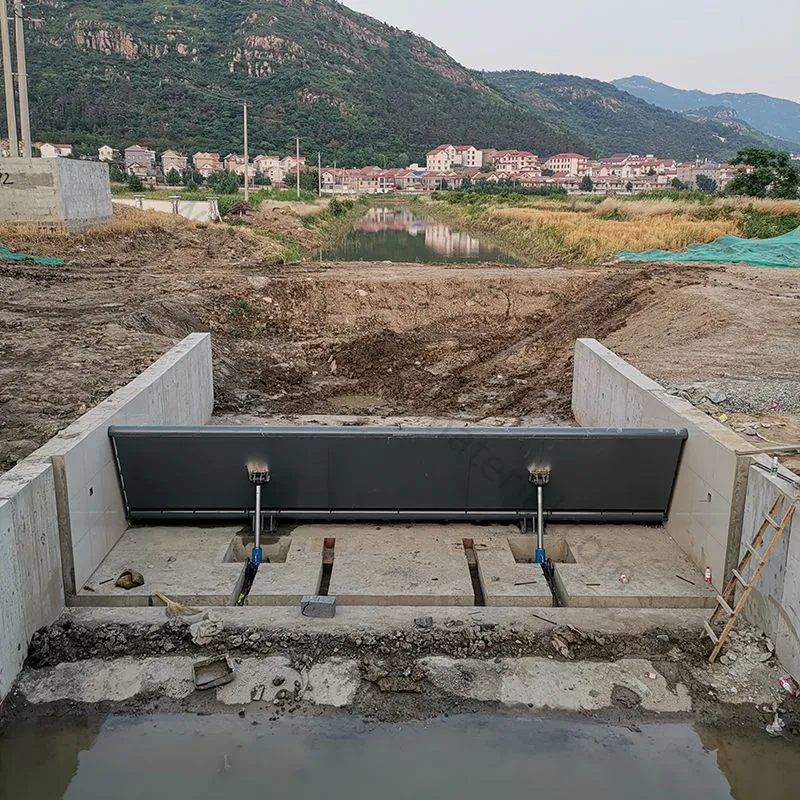

1. Liftable Dam Panels

As the direct water-retaining component, dam panels form the "barrier surface" of the dam and determine its ability to resist hydraulic pressure.

Materials: Selected based on project scale and water head requirements:

Small-to-medium dams: High-strength carbon steel plates (Q355 or Q460) with anti-corrosion treatments (hot-dip galvanizing, epoxy coating, or fusion-bonded epoxy) to withstand long-term water erosion and atmospheric rust.

Large dams or harsh environments: Reinforced concrete panels (with steel fiber or prestressed steel bars) for enhanced compressive strength, or composite panels (steel core + concrete coating) to balance rigidity and durability.

Structure: Typically rectangular or trapezoidal, with thickness ranging from 100mm to 500mm (depending on load). The top edge may have anti-wave baffles to reduce water splashing; the bottom edge is equipped with hinge seats for connection to the foundation. Adjacent panels have tongue-and-groove joints or overlapping edges to optimize sealing and structural continuity.

Function: When raised, they form a continuous water-retaining barrier to store water upstream; when lowered, they lie flat on the foundation (or tilt downward) to allow unobstructed flood discharge or water flow, avoiding obstruction to navigation or fish migration.

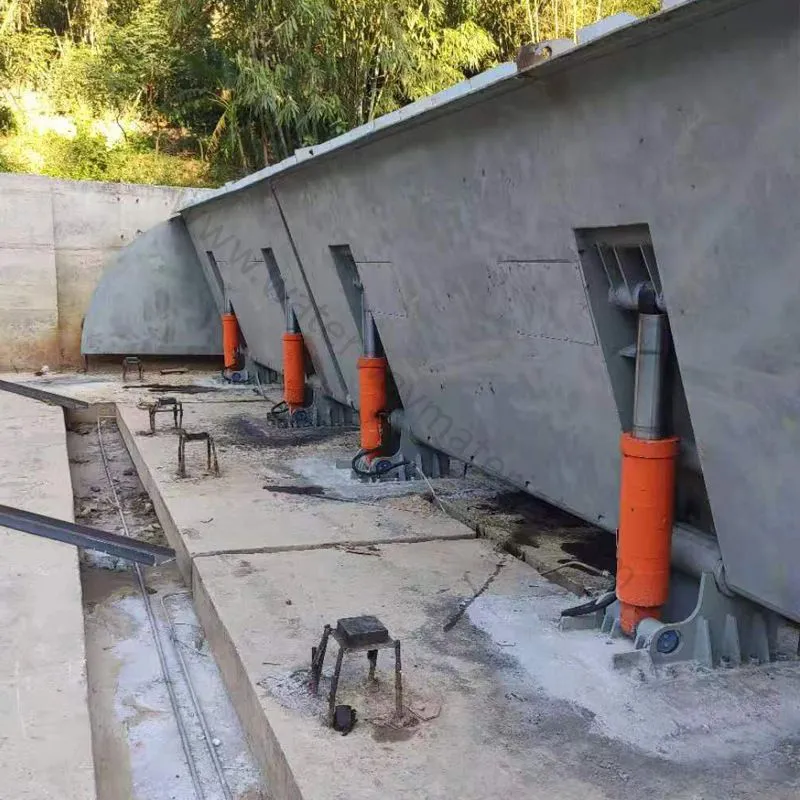

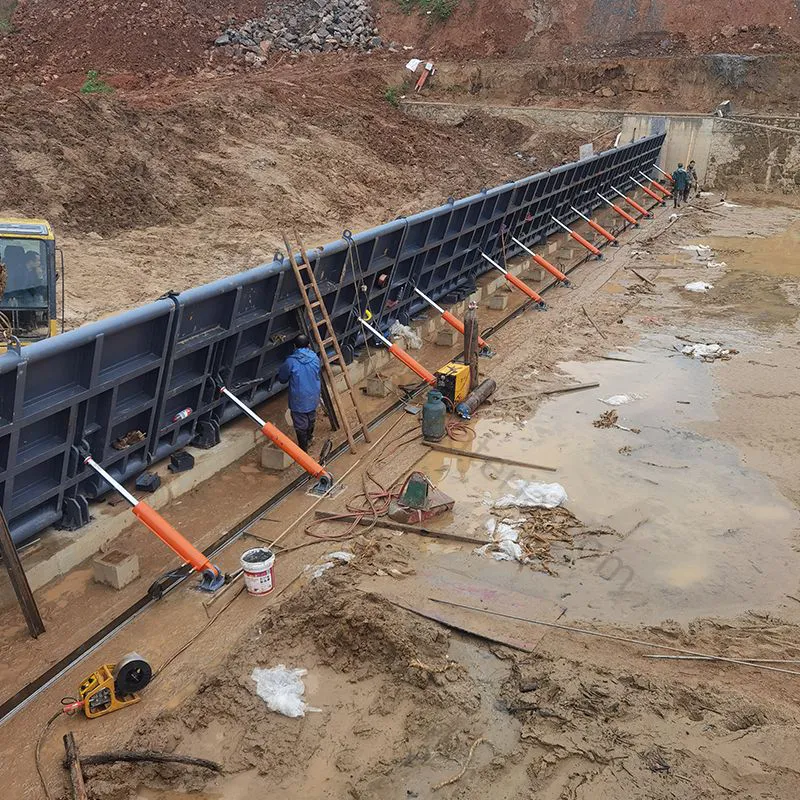

2. Hydraulic Cylinder System

The "power core" of the dam, responsible for driving the lifting and lowering of dam panels via hydraulic pressure.

Components: Includes hydraulic cylinders, piston rods, hydraulic hoses/pipelines, and cylinder mounting brackets.

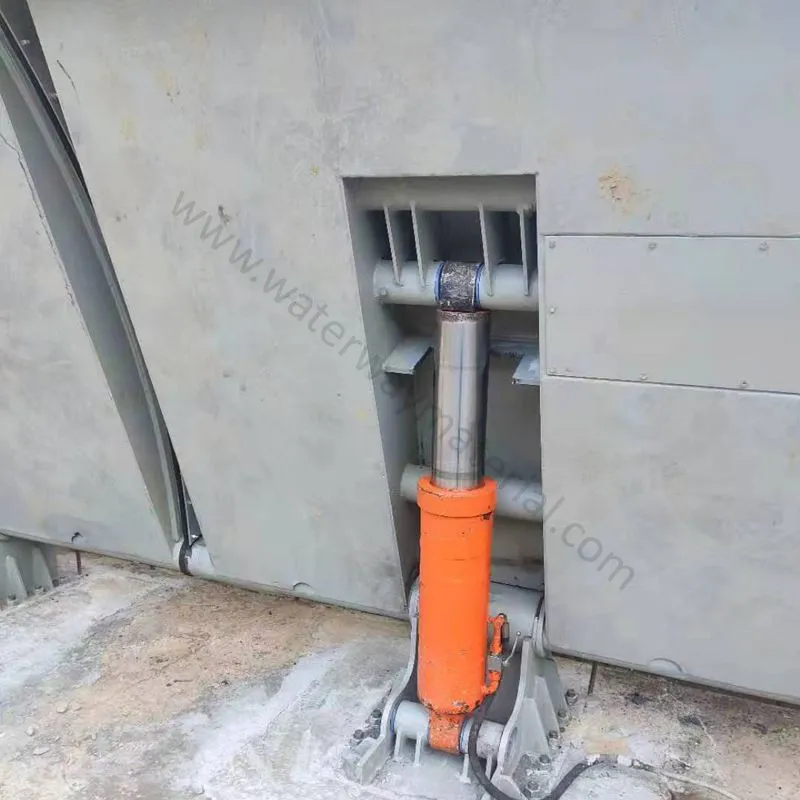

Hydraulic cylinders: Double-acting cylinders (most common) with a single or multi-stage telescopic design (for large lifting strokes). The cylinder barrel is made of high-strength alloy steel (45# steel or 27SiMn) with a chrome-plated inner wall to reduce friction and prevent wear; the piston rod is also chrome-plated and equipped with a dust-proof seal to avoid contamination.

Mounting brackets: Welded or bolted to the foundation (cylinder base) and dam panel (piston rod end), using hinge joints to allow rotational movement during panel lifting (adapting to the panel’s arc or tilt trajectory).

Working Principle: High-pressure hydraulic oil (typically 10–25 MPa) is pumped into the cylinder’s rod chamber or rodless chamber by a hydraulic pump:

To raise the panel: Oil enters the rodless chamber, pushing the piston rod upward to lift the panel.

To lower the panel: Oil enters the rod chamber, while the rodless chamber releases oil, and the piston rod retracts (assisted by the panel’s self-weight and upstream water pressure for energy efficiency).

Function: Provides stable, linear driving force to control the panel’s lifting speed and final position, ensuring smooth adjustment even under high water pressure.

3. Supporting & Guiding Structure

This system stabilizes dam panels during movement and operation, preventing lateral displacement or deformation under hydraulic load.

Key Components:

Hinge joints: Installed at the bottom of dam panels (connecting to the foundation) and the top of hydraulic cylinders (connecting to panels). Made of wear-resistant alloy steel (e.g., 40Cr) with lubricating grease fittings to ensure flexible rotation.

Lateral guide rails: Vertical steel rails fixed to the upstream/downstream shore walls or foundation. Each dam panel has guide rollers or sliding blocks that fit into the rails, limiting horizontal movement caused by water pressure.

Supporting brackets: Reinforced steel frames located at the panel’s midpoint or top (for long-span panels) to distribute load and prevent bending. They may be retractable or fixed, depending on the panel’s design.

Function: Ensures dam panels move along a fixed trajectory (vertical or tilted) during lifting/lowering, and maintains structural stability when retaining water—avoiding tilting, jamming, or collapse due to uneven force.

4. Hydraulic Control System

The "brain" of the dam, regulating the hydraulic cylinder system to achieve precise, safe operation.

Components:

Hydraulic power unit (HPU): Includes an electric hydraulic pump (single or dual for redundancy), oil tank (with oil level and temperature sensors), oil filter (to remove impurities), and cooler (to prevent overheating of hydraulic oil).

Valve group: Solenoid directional valves (control oil flow direction), pressure relief valves (limit maximum system pressure to prevent overload), flow control valves (adjust lifting/lowering speed), and check valves (prevent reverse oil flow and panel drop in case of power failure).

PLC control cabinet: A programmable logic controller (PLC) that processes signals from sensors and issues commands to the valve group. It is equipped with a human-machine interface (HMI) for real-time monitoring (cylinder pressure, panel position, oil temperature) and manual/auto operation switching.

Sensors: Displacement sensors (monitor dam panel height), pressure sensors (detect hydraulic system pressure), and water level sensors (measure upstream/downstream water levels) to provide feedback for closed-loop control.

Function: Automates or manually controls the dam’s operation—e.g., automatically raising panels when upstream water levels are low (to store water) or lowering them when levels are high (to discharge floodwater). It also includes safety interlocks (e.g., stopping operation if pressure exceeds limits) to prevent equipment damage.

5. Foundation Structure

The "load-bearing base" that anchors all components and transfers hydraulic forces to the ground, ensuring the dam’s long-term stability.

Materials & Design:

A reinforced concrete foundation slab (thickness ≥ 800mm) poured on a compacted soil or rock base. The slab is reinforced with steel meshes or prestressed steel bars to resist tensile and compressive forces.

Embedded parts (steel plates, anchor bolts) are pre-installed in the slab to connect hydraulic cylinder bases, hinge joints, and guide rails—ensuring alignment with dam panel dimensions.

Upstream and downstream anti-scour protection: The foundation’s upstream edge may have a concrete apron (to prevent water erosion of the base), and the downstream edge may have a stilling basin (to dissipate energy of discharged water and avoid scouring the riverbed).

Function: Distributes the total load (dam panels, hydraulic system, and water pressure) evenly to the underlying soil/rock, preventing settlement or displacement of the entire structure.

6. Water Sealing Devices

Critical for preventing water leakage between dam panels and between panels and the foundation—ensuring the dam’s water-retaining efficiency.

Types & Materials:

Panel-to-panel sealing: Rubber gaskets (made of nitrile rubber or EPDM, with good elasticity and water resistance) installed in the tongue-and-groove joints of adjacent panels. When panels are closed, the gaskets are compressed to form a tight seal.

Panel-to-foundation sealing: A rubber waterstop strip (fixed to the foundation’s hinge seat) that contacts the bottom edge of the dam panel. It may have a "U-shaped" or "L-shaped" cross-section to adapt to the panel’s rotation during lifting.

Side sealing: Rubber strips fixed to the lateral guide rails, sealing the gap between the dam panel’s sides and the shore walls.

Function: Eliminates gaps in the water-retaining surface, reducing leakage to ≤ 0.1L/(m·s) (meeting industry standards) and avoiding water waste or erosion of the foundation.

7. Emergency Protection System

Designed to ensure safety during power outages, equipment failure, or extreme floods.

Components:

Manual emergency pump: A hand-operated hydraulic pump connected to the cylinder system, allowing manual lowering of dam panels if the electric pump fails.

Pressure relief valves: Automatically release excess oil pressure in the hydraulic system if pressure spikes (e.g., due to sudden water level rise).

Emergency stop button: A hardwired button that cuts off power to the HPU and closes key valves in case of danger (e.g., panel jamming).

Function: Minimizes risks of structural damage or flood hazards during abnormal conditions, ensuring the dam’s operational safety.
