Detailed Components of an Inflatable Rubber Dam

Inflatable rubber dams are flexible hydraulic structures used for water level regulation, flood control, and irrigation. Their design combines durability, flexibility, and adaptability, consisting of the following key components that work in tandem to ensure stable operation:

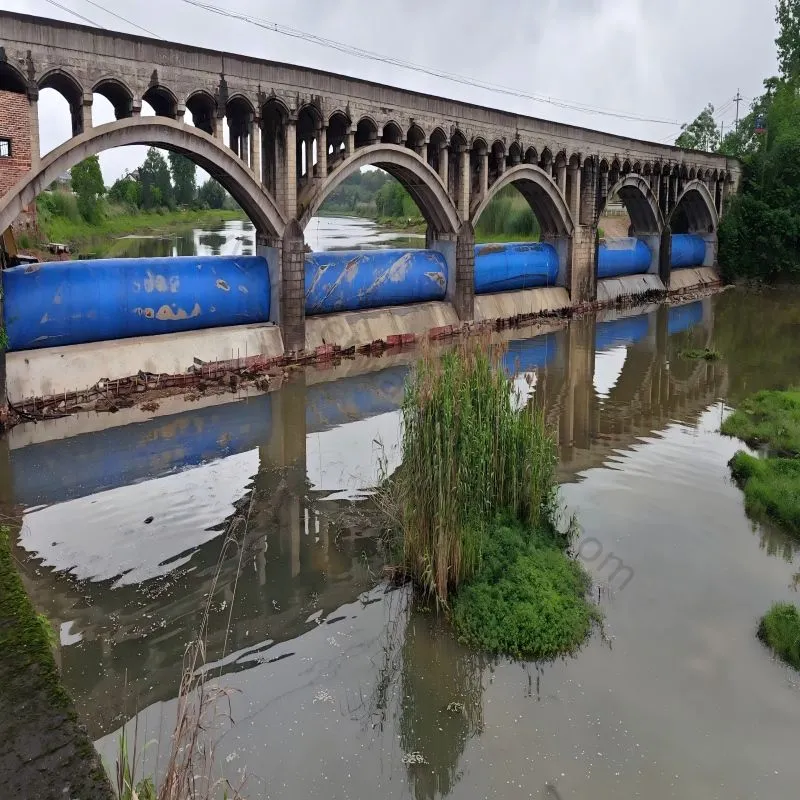

1. Rubber Dam Bag

The dam bag is the core structural element, forming the primary barrier when inflated.

Materials: Constructed from high-strength composite materials, typically multiple layers of synthetic rubber (e.g., neoprene, EPDM) reinforced with woven fabric (nylon, polyester, or aramid fibers). This combination balances elasticity, tensile strength, and resistance to UV radiation, ozone, and chemical corrosion from water or soil.

Structure: Designed as a hollow, bladder-like structure, often in single-arch (most common) or double-arch shapes. The number of layers (2–4 layers) depends on pressure requirements—higher layers for larger water heads. Edge sections are reinforced with thicker rubber or embedded metal strips to enhance connection strength with the anchoring system.

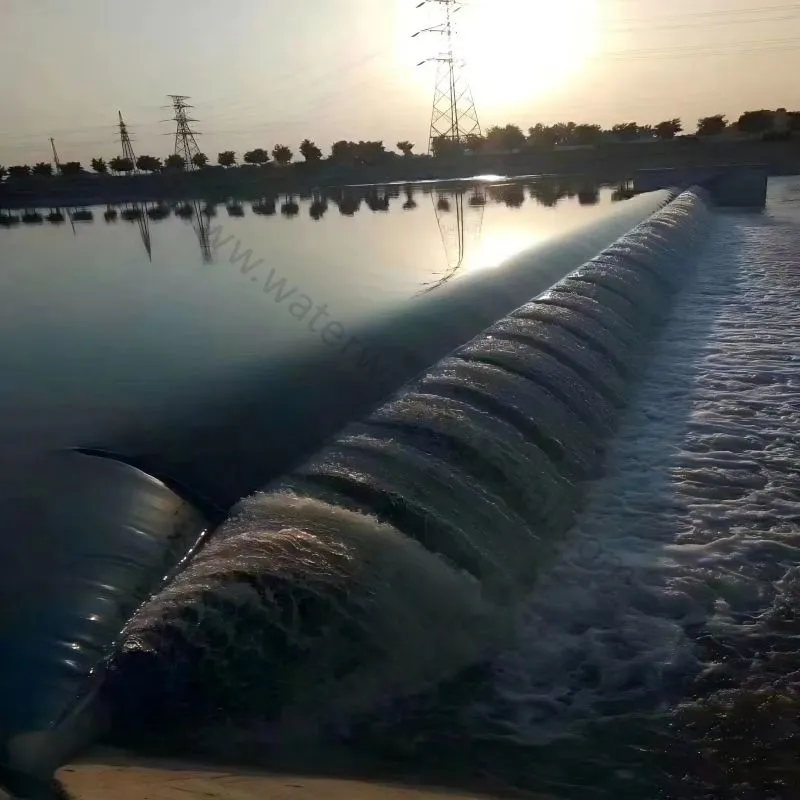

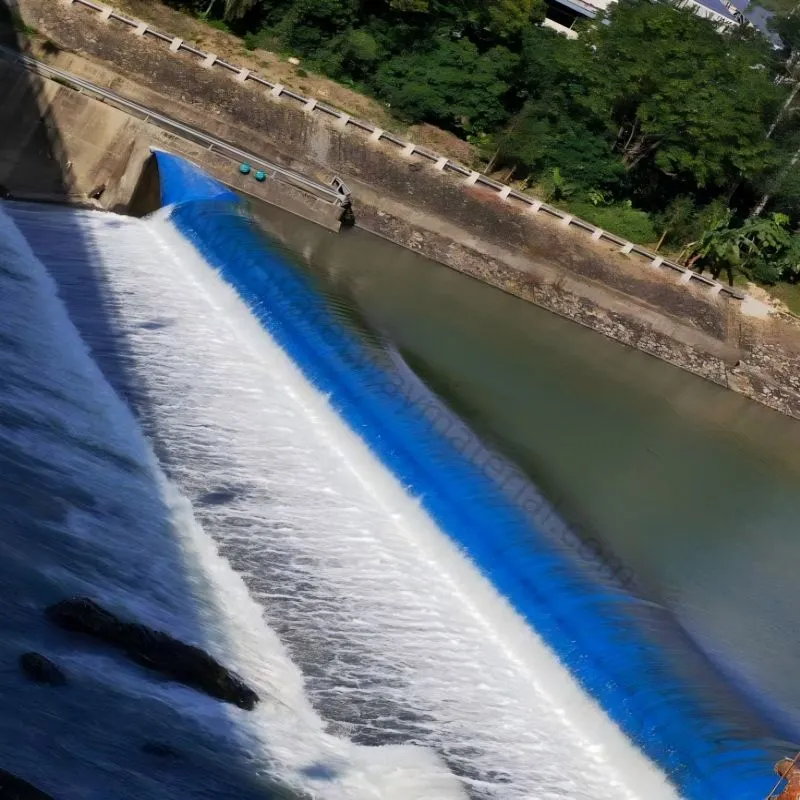

Function: When inflated with air or water, it expands to form a raised barrier, impounding water upstream. When deflated, it collapses flat against the foundation, allowing unobstructed water flow.

2. Anchoring System

This system secures the dam bag to the foundation, resisting hydraulic forces to prevent displacement.

Components: Includes anchor bolts, steel clamping plates, concrete anchor trenches, and edge reinforcement strips (integrated with the dam bag).

Bottom anchors: Fix the dam bag’s lower edge to the concrete foundation, distributing vertical pressure.

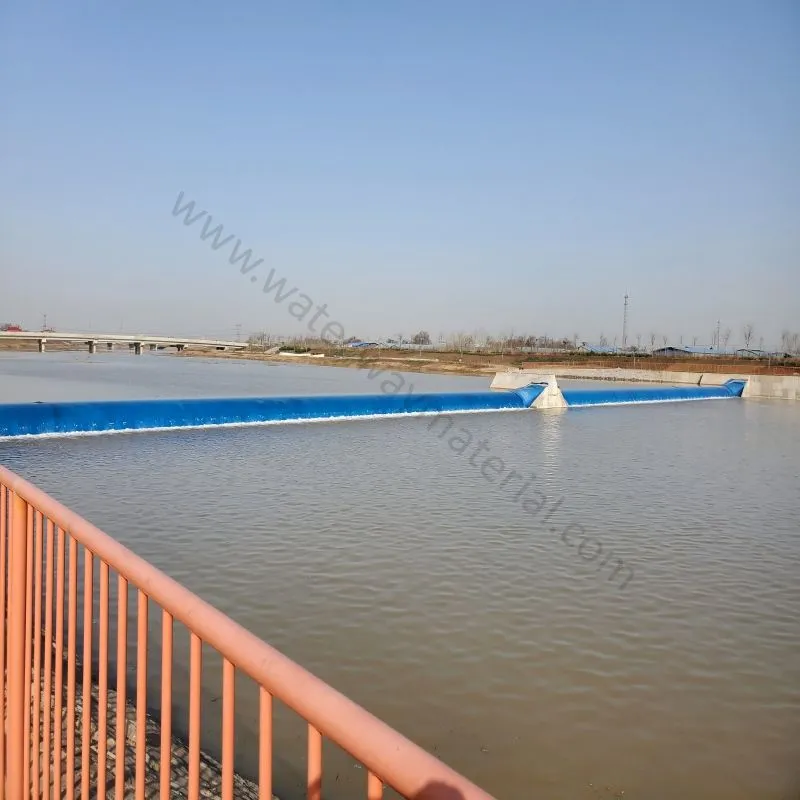

Side anchors: Secure the bag’s lateral edges to the upstream and downstream shore walls, counteracting horizontal water pressure.

Materials: Anchor bolts and plates are made of corrosion-resistant steel (e.g., galvanized or stainless steel). Concrete anchor trenches are reinforced with steel bars to withstand tensile forces.

Function: Transfers the hydraulic load from the dam bag to the foundation, ensuring the structure remains stable even under maximum water pressure.

3. Inflation/Deflation System

This system controls the dam bag’s inflation (to raise the dam) and deflation (to lower it) via fluid (air or water) transfer.

Key Elements:

Pumping equipment: Air compressors (for air-inflated dams) or water pumps (for water-inflated dams) to supply the inflation medium.

Pipelines: Reinforced hoses or metal pipes connecting the pump to the dam bag, with diameters matched to flow requirements.

Valves: Solenoid or manual valves to regulate fluid flow direction (inflation/deflation) and rate. Check valves prevent backflow.

Function: Adjusts the dam bag’s internal pressure to control its height, adapting to varying water management needs (e.g., storing water for irrigation or lowering to release floodwaters).

4. Control System

A monitoring and operation hub that automates or manually regulates the dam’s performance.

Components:

Sensors: Pressure transducers (monitoring internal bag pressure), water level sensors (measuring upstream/downstream levels), and temperature sensors (tracking ambient or bag conditions).

Control panel: A centralized interface (PLC-based or computerized) displaying real-time data and allowing manual/auto operation of pumps and valves.

Communication modules: Optional wireless systems for remote monitoring and control in large-scale projects.

Function: Ensures safe, precise operation by maintaining optimal pressure (preventing over-inflation or under-inflation) and triggering adjustments based on water level changes.

5. Safety Devices

Critical safeguards to protect the dam from damage during abnormal conditions.

Pressure relief valves: Automatically release excess air/water if internal pressure exceeds the safe threshold, preventing bag rupture.

Emergency deflation valves: Manually or remotely activated to rapidly deflate the dam in emergencies (e.g., extreme floods, equipment failure).

Overload protection: Sensors on pumps/motors shut down equipment if current/load exceeds limits, avoiding mechanical damage.

Lightning protection: Grounding systems and surge protectors shield electrical components (pumps, sensors) from lightning strikes.

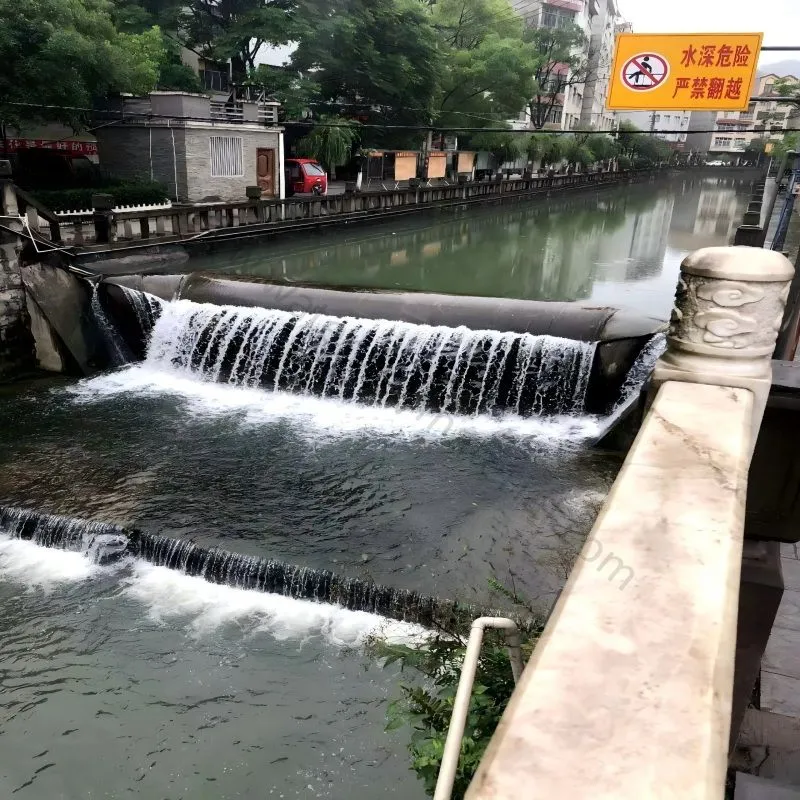

6. Foundation Structure

The underlying base that supports the entire dam system.

Components: A reinforced concrete slab (base plate) and upstream/downstream shore walls. The slab may include a waterproof membrane (e.g., geomembrane) to prevent seepage beneath the dam.

Design: Sloped or flat, depending on site conditions, with drainage channels to remove accumulated water under the deflated dam bag.

Function: Provides a stable, level surface for anchoring the dam bag and distributing loads to the ground, while preventing water leakage under the structure.
